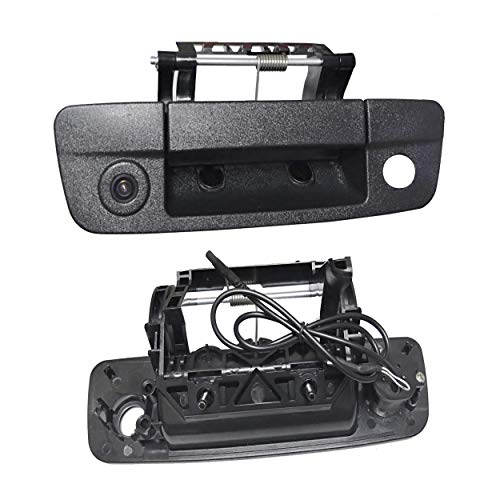

Weivision Tailgaters Replacement Black Tailgate Backup Reverse Handle Camera for Dodge Ram 1500 2009-2017 for Universal RCA Monitors

Feature Product

• 1/3'' HD Colorful lens, 700TVL HD wide angle camera with 0.01Lux/F1.2 min. illumination.Optional guideline .
• Special Dodge Ram 1500( Years 2009-2017), 2500+3500 (Years 2010- 2017)
• New design with universal RCA connectors for compatibility, easy to replace other backup camera (such as license plate camera) without re-routing the extension cable. Total 26 feet cable length to cover long bed.
• Route the cable from tailgate to front dash, connect to display with universal RCA connector, you may need additional adapter (not included) if to connect factory radio
• This kit comes with all the wiring to install into your truck with aftermarket display (High definition monitor is recommended for better image).* MONITOR OR NAVIGATION UNIT NOT INCLUDED

Description

Specifcations

Camera Chip sensor : 1/3 color sensor

Horizontal Resolution(TV lines): 700TVL

Signal System: NTSC

Effective Pixels: 728x512 pixels

Lens viewing angle: 120~170 degrees

Horizontal viewing angle: 135 degrees

Ip Rating: IP69

Video Output: 1.0Vp-p,75 ohm

Current Consumption: 50 mA

AGC & BLC: Auto

S/N ratio : Better than 48dB(AGC-OFF)

Shutter speed: 1/50(1/60)-1/100,000sec

Minimun Illumination: 0.1Lux/F1.2

Power Supply(DC): 12V

Operating Temperature(Deg.C): -20+75(RH95% Max.)

Storage Temperature(Deg.C): -30~+85(RH95% Max.)
