Backup Camera View Mirror and Camera,Auto Rover Car/Vehicle/Truck Waterproof Night Vision License Plate Reversing Camera TF

Feature Product

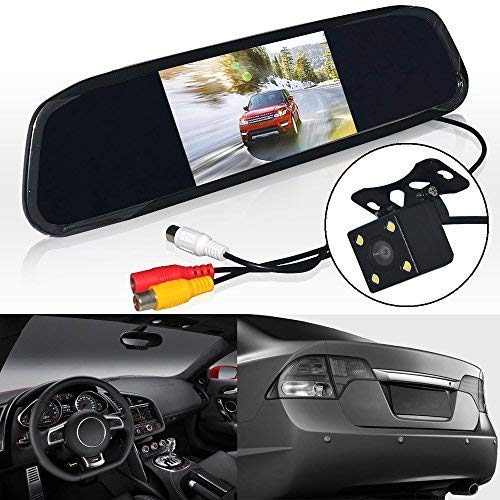

• 2-in-1 Function: Rearview mirror and car parking monitor. 4.3 "LCD color TFT monitor and high resolution LED camera (480W * RGB * 272H) .
• Anti-Glare Glass Surface: Especially suitable for reversing camera or parking sensor configuration, compatiable with all US cars.
• Night Vision Reverse Camera: Waterproof and shockproof, with 4 LED chips, high definition and wide viewing angle(120~150 degrees).
• Easy installation: The system is powered by connecting to reverse lights for use when vehicle is in reverse gear. Or can be powered by directly connecting to a 12v source fuse box or cigarette lighter/power point/ignition switch for continuous use.
• Customer Service: 30 Days money back. 12 Months warranty. If you meet any problem, welcome to contact us.(such as how to install the product, other problem)

Description

What's in the box?:
1 X 4.3 inches rear view monitor
1 X LED reversing camera
1 X Extension cable
2 X Power cable
1 X Installation instruction

How to install the product?
Step 1.
Confirm the package is complete
1*4.3inches rear view monitor, 1*reversing camera, 2*power cable, 1*extension cable

Step 2.
Connect the yellow cable of the camera and monitor by using the extension cable

Step 3.
Connect the power cable with the red cable of the camera and the monitor

Step 4.
Connect the power cable to your car power(small red wire for positive, small black wire for negative)

Suggestions:
Before you install the product to car, it is better to test the product
first in order to see whether you are satisfied with it.

Monitor Parameter:
Screen size:4.3 inch
Material:TFT LCD
Resolution:480RGB*272
Video Input:2 way (Video 1 & Video 2)
Power Supply:DC 12V(Max 2.5W)
Operating Temperature (Deg.C):-30~+80(RH95% Max.)
Storage Temperature (Deg.C):-40~+85(RH95% Max.)
Working Mode:Automatically turn on and switch to video source when video signal is detected.

Camera Parameter:
TV system:NTSC
Horizontal Resolution:500 TV lines
Effective pixels:928*500 pixels
Video cable length:6 Meter
Viewing Angle:170 degrees
Waterproof Level:IP67~68
Power Supply:DC 12V
Operating Temperature (Deg.C):-20~+75(RH95% Max.)
Storage Temperature (Deg.C):-40~+85(RH95% Max.)
