Feature Product

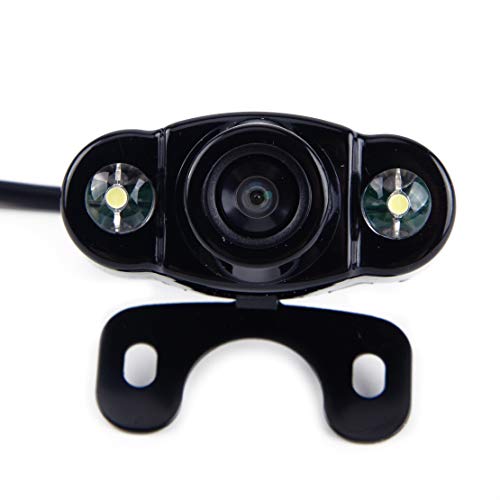

- With 2 LED light modules, night vision effect is very good, in a complete absence of light auxiliary reversing
- 170 degree wide viewing angle, help to avoid incidents and accidents abrasion well.
- CCD imaging sensor processing, night vision effect is obvious.
- Frog eye rear view reversing camera,small size won't draw any attention.
- Item included:1 x CCD Car Rear View Camera, x 6M Video Line, 1 x 1M Power Line
Description
Color:Black
Material:ABS Plastic & Metal
Camera Size: approx.4.6x2.1x2.3cm(1.8x0.8x0.9inch)(LxWxT)
Camera line: approx.53cm(20.9inch)
Distance between mounting holes : approx.2.8cm(1.1inch)
Power Line: approx.97cm(38.2inch)
Video Line: approx.590cm(232.3inch)
Voltage: DC12V
Current consumption: 150mA
Image standard: NTSC 60HZ/PAL 50HZ
Effective Pixel: 656x492
Horizontal resolution: 480 TVL (Enhanced)
Diagonal angle: 170 degree
Horizontal angle: 110 /160 degree
Lens angle: 120 /170 degree
Minimum illumination: 0.5Lux/F1.2(Lux with LED)
RCA video output: 1.0 Vpp / 75ohm
Operating Temperature: -20- 80 degree Celsius, RH 95%MAX
Storage temperature: -40-85 degree Celsius ,RH 95%MAX
Waterproof: IP67
Item included:
1 x CCD Car Rear View Camera
1 x 6M Video Line
1 x 1M Power Line
1 x Manual Instruction
2 x Screw
Compatible With: fit for all car
This Is Aftermarket Replacement Item But Not Genuine
Note:
1) All dimensions are measured by hand, there may be small deviations.
2) Adapt to 12V car electrical system, can not be installed on 24V electric car.
3)Please install and maintain the system when the power is off.
Feature:
1) Imported chips, image color high-definition, more realistic.
2) Support NTSC or PAL Video System
Installation:
1) 6M AV Line connected to the monitor, the red lines lead to the monitor trigger wire.
2) Connect the 1M power line to the camera power supply, the red leads to 12V reserve light(positive pole), the black leads to ground(negative pole).
