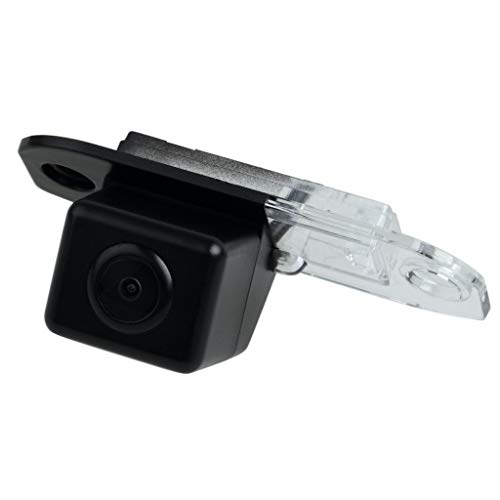

170 Degree Angle Car Rear View Reversing Camera Back-up Number Plate Lamp Camera for Volvo XC60/XC90/S40/S60/S60L/S80L/V60 Night Vision Waterproof Glass Lens 6V/12V/24V Input

Feature Product

• Fit for : XC60 2013/2014 ; XC90 2012/2013 ; S40 2012 ; S60 2013/2014 ; S60L 2014 ; S80L 2012/2014 ; V60 2012/2013/2014
• Installation location: Car license plate light hole, keep your car original number plate lamp
• Small size connector, easy for installation
• Support normal image & mirror image manual switch
• Packing included: 1pc Camera ; 1pc Power adaptor ; 1pc User manual ; 1pc 6m Video cable (RCA to RCA yellow Jack)

Description

Fit for following models :

XC60: 2013/2014
XC90: 2012/2013
S40: 2012
S60: 2013/2014
S60L: 2014
S80L: 2012/2014
V60: 2012/2013/2014

Installation location : Car license plate light hole, keep your car original number plate lamp.
Function Control :
If cut the white cable that on the camera, change the mirror image to normal image.
If cut the green cable that on the camera, cancel the parking line.

Specifications:

Lens materials: 100% Glass
Typical type: High-sensitivity mode for low-light conditions
Image Sensor: MT9V136
Wide Angle: 170 degree (Diagonal), 128 degree (Horizontal), 115 degree (Vertical)
Optical distortion: -88%
Video System: NTSC (default)
Image Output: 720H x 480V@NTSC, 720H x 582V@PALResolution: 480 TV Lines
Color filter array: RGB standard Bayer
Automatic functions: Exposure, white balance, black level offset correction and more
Degree of protection: IP67 (Waterproof)
Parking line: ON/OFF manual control
Trigger cable: Built-in
Image: Normal & Mirror manual control
Working time: Full-time continuous working (7*24Hours)
Power Supply: DC 5V to 28V
Working current: 67mA@DC 12V
Operating Temperature: -40oC to +80oC/-40oF to 176oF

Note:
the car name we mentioned is based on data of China car and feedback from customers all over the world. According to our experience, the same brand car in different countries may have some differences, so please check the camera size and compare the installation of your car carefully to avoid mistake.
it supports after market head unit only. It should be with RCA yellow jack.

Packing included :
1pc Camera
1pc Power adaptor
1pc User manual
1pc 6m Video cable(RCA to RCA yellow Jack)
