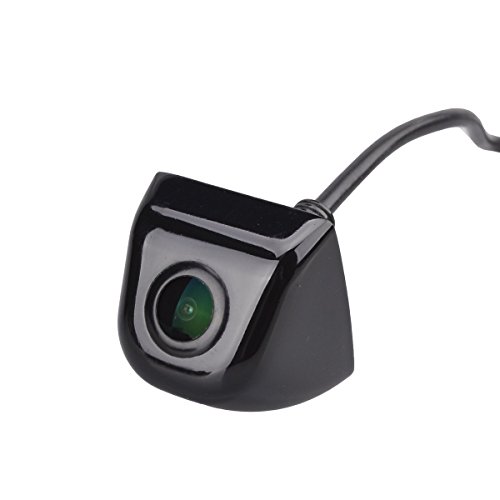

Sincere Car Rear View Camera PAL 170 Degree Night Vision Waterproof with Imaging Chip (XL-96202)

Feature Product

• IMAGE SENSOR. The CCD image sensor has better seismic impact resistance, stable performance and longer life, a wider dynamic range, more integrated pixels
• PERFECT NIGHT VISION. Up to 0.01 Lux illumination perfect night vision, extreme conditions, ultra high-definition night vision
• MOTION SENSON REMINDER. The built-in motion sensor will remind you when there are people or animals appear to move in the area, a logo will flash on the top left corner on the screen.
• EASY INSTALLATION: The original zinc alloy casing and compact design allows easy installation, loading effects with the original car with more
• POST SALE WARRANTY: We offer 30 days money back guarantee, 24 months replacement warranty, lifetime support guarantee and customer service and technical support.

Description

Attention:
We have made a little change on this product, there is no remote or button to remove the guide lines or flip the image now.
Technical Title£º
Image Sensors: high resolution
Waterproof grade£ºIP 67
Horizontal resolution£º600TVL
Effective Pixels£º811*508
TV System£º PAL
Lens Angle (Deg.)£º170¡ã diagonal
Minimum illumination£º0.01 Lux
Electronic Shutter£º1/60(NTSC)/1/50(PAL)-1/10,000S
S/N Ratio£º¡Ý48dB
Horizontal Sync.Frequency (KHZ)£º15.625KHz/15.734KHz
Vertical Sync.Frequency (HZ)£º60Hz/50Hz
Video output£º1.0vp-p,750hm
White Balance£ºAuto
AGC £ºAuto
BLC £ºAuto
Power Supply£ºDC12V¡À1V
Power£º0.7W
Current Consumption (mA)£º70~80mA
Operating Temperature (Deg.C)£º-30~+70(RH95%MAX.)
Storage Temperature (Deg.C)£º-40~+80(RH95%MAX.)
description:
1. The switching power supply circuit design, low power consumption and very stable performance.
2. The highest grade industrial grade waterproof IP67
3.170 degree super wide-angle, the car exhaustive list of things
4. Each of our products through vibration testing, aging, waterproof test, high and low temperature test UV test, air tightness test and a series of tests before leaving the factory car regulatory standards to ensure product quality

Package Includes:
1*Car rear view camera
1*1.2m Power wire(4ft)
1*6.5m Video wire(21ft)
1*0.5m Conversion wire(2ft)
1*user manual

Package Size: 14.5 * 10 * 6cm
GW: 300G

If you are not familiar with installation, or have any problem with this purchase, please feel free to conatct us for support.
