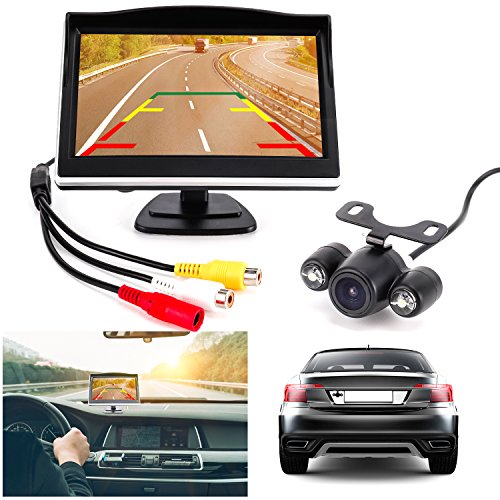

Backup Camera and Monitor Kit for Car,Universal Wired Waterproof Rear-View License Plate Car Rear Backup Camera + 5 LCD Rear View Monitor

Feature Product

• Installation is very simple. The system is powered by connecting the reversing light so that it can be used when the vehicle is reversing. Alternatively, it can be powered by direct connection to a 12V power fuse box or cigarette lighter/power point/ignition switch for continuous use.
• IP68 waterproof, color HD license plate camera, 135 degree viewing angle and 2 LED lights. The camera is connected to the monitor via a direct line (provided). Clear night vision.
• The 5-inch LCD display is mounted directly on the instrument panel or with a suction cup attached to the windshield.
• It will not prevent implementation The monitor has the ability to monitor two video inputs V1 / V2. V2 video input will have priority (reverse camera) to ensure safety.
• Includes installation instructions. This product is backed by a one-year warranty and technical support is available upon contact.

Description

Rear View Camera and Display Vehicle Security System Features:
1, The system is mainly used for car / SUV / pickup / small trucks and other supply 9V-14V power supply
2, can add a front / side / rear camera (bidirectional video input monitor) for the current system
3, After the power is turned on and the video signal is input, the monitor will automatically turn on and then turn off automatically.
4, screen pictures are days of color HD pictures
5, The camera is IP68 waterproof and 2 LED night vision
6, the system can be set to reversing or working in your optional driving.
7, the entire system can be connected to a single power supply (reversing light or cigar lighter), easy to install.
8, the monitor can be installed on the dashboard, or the monitor bracket can be disassembled to any place you like
9, We provide instruction manuals and videos for all our customers. If you do not get it, please contact us.
10, 1 year warranty

5-inch monitor specifications:
The product itself is 100% safe and complies with FCC / CE / RoHS / UL / IP6X standards
- Display: 5 inches (diagonal length)
- Resolution: 800(W)×480(H)
- Ultra low power consumption prevents overheating Signal
format: PAL / NTSC. Compatible with all signal formats
- Rated voltage: 9V - 35V, 400mA-20A

Rear view camera specification:
The product itself is 100% safe and complies with FCC / CE / RoHS / UL / IP6X standards Image Sensor: PC7070 (distance reference mark display)
Resolution: 420 TV lines
S / N Radio: Better than 48db
Video output: RCA connector, 1.0vp-p, 750hm
Power Supply: 9V-12V DC, 400mA-20A
Waterproof rating: IP68
Effective pixels: 648X488 pixels / NTSC

The package includes:
1 x 5-inch monitor
1 x rear view camera
2 x power cord 3.2 feet
1 x video cable 20 feet
1 user manual
