Feature Product

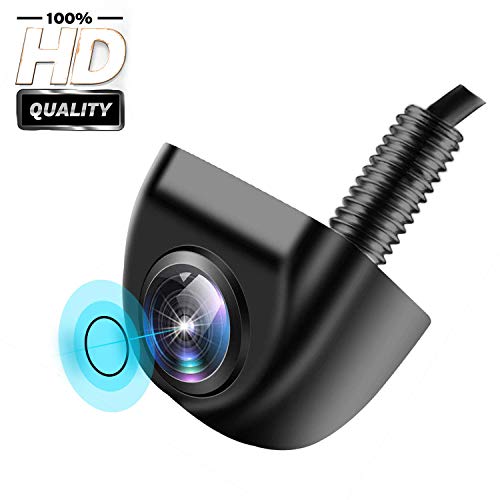

- Backup camera with IP69K waterproof IP rate. It designed with fully sealed glue filling craft, so it waterproof function is better than IP67 and IP68, you absolutely no need to worry about water, fog or mist inside
- Rear view camera with a latest HD 600TVL 1/2.7inch image sensor and 170 degree super wide viewing angle lens, that's great for you to check the invisible blind spot clearly and make parking safe and simple
- Solid metal housing design.Shockproof /Waterproof and Weather-resistance,fit for all outdoor weather conditions.
- Optional back/front/side views and guide line: This streamlined vehicle backup camera is all business and no frills. There is two wires white/green allows you to shift between front view, back view, and turn guidelines on and off.
- Backup camera can fit most types of DC 12-24V different length vehicles. Such as Cars, Pickup Trucks, SUVs, Vans, RVs, etc. It with great night vision (low illumination level: 0.01Lux)
Description
Please NOTE!
Four option for views and guideline: 1,Both white/green are uncut has front view without guide line
2,Both white/green wire are cut has rear view with guideline
3,White wire is cut and green is not,has front view with guideline
4,Green wire is cut and white is not,has rear view without guideline
Features:
Waterproof, Can be used both in car and home
Night vision with 4 LED light
Parking Guide Line
Applicable to variety of Vehicles: car, truck, RV, mini-van etc
Can help avoid incidents and accidents abrasion well
Compact design and easy to install
Specifications:
TV system: NTSC/PAL
Effective pixels: 658 x 462 Pixels/628 x 586 Pixels
Sensing area: 5.961 x 4.276mm
Horizontal resolution 420TVL
Shutter speed 1/60-20us
Minimum illumination: 0.1Lux/ F1.8=1.2 (0 Lux with Led)
Lens Angle: 170°
White balance Auto
Color Black
Waterproof: IP67-IP68
Video output: 1.0Vp-p, 75ohm
Current Consumption: No More 300mA
Power supply: DC 12V
Operating Temperature: -20°C~ 60°C, RH95% Max.
Storage temperature: -30°C ~ 60°C, RH95% Max.
Video cable length: 6m
Power supply cable length: 1.5m
Installation:
Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)
Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative. Connect the video cable of the camera to the extension cord.
Connect the extension cord to your car monitor.
You will see the images when your car is in reverse shift.
NOTE: it can support NTSC and PAL system!
Package Included
- 1 x Car Rear View Camera
- 1 x DC power cable
- 1 x AV cable (19 ft)
Seller Warranty
- 30-Day Money Back Guarantee
- 12 Month Replacement Warranty
- Lifetime Support Guarantee
