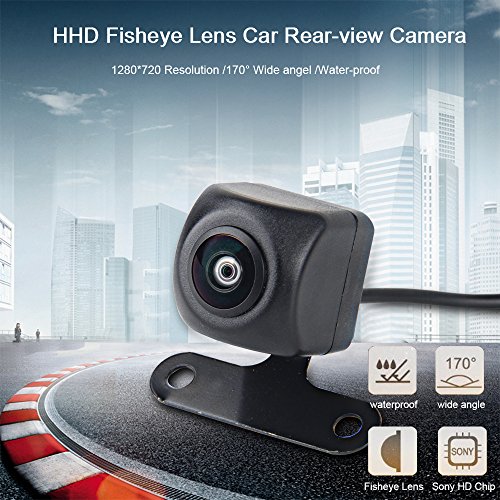

Dasaita 170° Angle HD Fisheye Lens Reversing Camera for Universal Rear View Backup Cams Back up Rearview Cams Reversing Parking Kit

Feature Product

• Video cable length: 6m
• Power supply cable length: 1.5m
• Video Output: RCA interface,
• Power: DC 12V
• Operating Temperature: -20°C~ +60°C, RH95% Max

Description

· Support NTSC OR PAL Video system. (if you need PAL , you need write in the order details )
  · Support NTSC OR PAL Video system. (if you need PAL , you need write in the order details )
  · Image Sensor: 1/3 "OV Color CCD
  · Effective Pixels: PAL 720 (H)x480(V); NTSC 512 (H)x492 (V)
  · Horizontal Resolution: 480 TVL
  · Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)
  · Night Vision: 5-10meters
  · Lens: 1.8mm
  · Diagonal Viewing Angle: 120 degree (left to right ) 170 degree (up and down)
  · Synchronization: Internal synchronization
  · Signal to noise ratio: >48db
  · Signal System: PAL/NTSC
  · Electronic Shutter: Auto
  · Video Output: RCA interface, 1.0Vp-p, 75Ohm
  · White Balance: Auto
  · Backlight Compensation: Auto
  · Power: DC 12V
  · Current Consumption: 50-60mA, Max 130mA with IR on
  · Operating Temperature: -20°C~ +60°C, RH95% Max
  · Storage Temperature: -30°C ~ +80°C, RH95% Max
  · Video cable length: 6m
  · Power supply cable length: 1.5m
