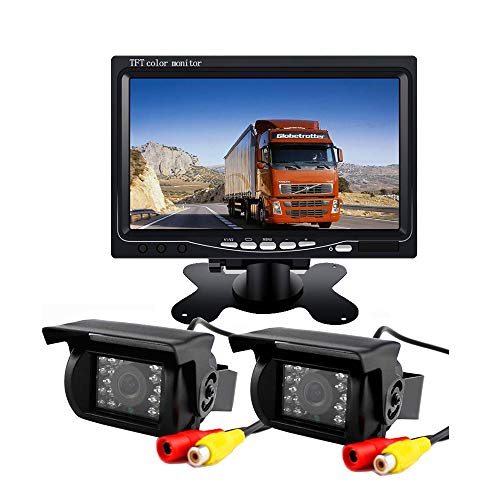

ZhanHongXiang Vehicle Reverse Backup Camera x2,IR Night Vision Car Rear View Mirror Camera Kit 12V/24V + 7 inch Car LCD Rearview Parking Monitor with 10m Video Cable For RV Truck Trailer Bus Camper

Feature Product

• Wired version backup camera x 2pcs + 7 inch LCD monitor and 10m RCA single video cable Support All 12V-24V Long Bus Truck Trailer RV Caravan Motorhome Schoolbus Camper Lorry boat 5th wheel heavy Duty
• 7 inch TFT Car LCD monitor high resolution image (800x480 Pixels), full color display and low power consumption, adjustable brightness, contrast and color. Image can be rotated horizontally and vertically for mirror or none mirror viewing with 2 channel video input,V1/V2 button switch,2 connect plug,V2 is remote by Blue wire for reversing use priority
• Backup camera includes 18 IR LED,support 10-15 ft night vision clearly at night,Aluminum Metal shell Rear View Camera,Waterproof IP 68 and Mudproof,140 degree horizontal wide view angle,120 degree vertical view angle,build with HD 7070 Mirror imaging sensor without Grid Lines,Can be used both in car and home
• 12V/24V Car Backup Camera and Monitor Kit Parking Assistance System: 7 inch car LCD Monitor + 2 x 18 IR LED Night Vision Reverse Camera and 10m RCA video Cable. Hard wired version Camera system guarantees safe and clear and stable reversing image. Come with remote controller and Dashboard Bracket
• Monitor will automatically switch for V2 when the reversing gear is selected( Monitor blue cable need to connect for gearbox reversing trigger+)

Description

7 inch Car Rearview Monitor:

Display Component: Color TFT-LCD
resolution: 800*480 pixels
Contrast Ratio: 100:1
Video Frequency: PAL/NTSC
Power Consumption: Around 7W
Video: Two way video input
Power Supply:DC 12V-24V
Housing Material: ABS
Video Mode: 16:9/4:3 adjustable
Color: Black
work Temperature: -20°C~+60°C
Product Dimensions: 195*135*25mm (L*W*D)
Product weight: 379g
No audio input or output.
Rear watching: image can be rotate to left and right
Automatically displays blue screen when no signal
Parking rear-view priority with V2
brightness and contrast Adjustable

18 LED IR Backup Camera

Image Sensor:HD 7070 Mirror No Grid Lines
Horizontal Resolution:480 TVL
Minimum Illumination:0Lux
Number of pixels:720(H)*586(V)
Lens: 2.8mm
Diagonal Viewing Angle:120 degree
Signal to noise ratio:>48db(AGC OFF)
TV System:PAL
Scan frequency:50Hz-60Hz
Electronic Shutter: 1/60 ~ 1/15,000sec
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision: Yes
Synchronous System:International Synchronization
work Temperature: -20°C~+60°C
Waterproof:IP 68
Video Output:RCA Connetor interface,1.0Vp-p.1.5ω.
Power:DC 12V-24V
Current Consumption:Less than 50MA

Package Includes:

1 x 7 Inch LCD TFT Color Monitor
1 x Harness cable for Monitor
1 x Remote Control(Without Battery Due To Airline Limitation)
2 x 18 LED IR Car Rear View Camera
2 x 10m RCA single Video Cable
2 x DC Power Cable(about 40cm)
1 x User manual
