Feature Product

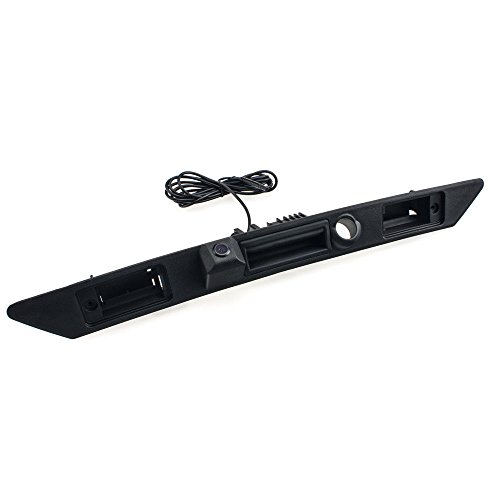

- Backup Parking Camera Suitable for Audi A3 , A4(01-08), A6(05-10) /Audi A3 8P /Audi A4 8E/Audi A6 4F
- Please be note that It don't have switch button option when you replace with original trunk handle bar.
- Package includes:1 x CCD Car Camera,1x user manual,1 x 6M video cable,1 X power supply cable
- Route the cable from tailgate to front dash, connect to display with universal RCA connector, you may need additional adapter (not included) if to connect factory radio
- Remark:This camera do not work well with original factory display/monitor, will work well with aftermarket display/monitor .Please check the dimension for fitting to your number plate light recess before purchasing
Description
Dear customer,Please must check the camera size and appearance before place a order, see if can fit your car license plate lamp place size and appearance! Because the same car model in different countries may have some difference,please check the camera size and compare the installation of your car carefully to avoid mistake.
This product could fit for all below models as expected:
Audi
A3 2008 - 2010
A3 Cabrio 2008 - 2010
A4 8E 2001 - 2008
A6 4F 2005 - 2010
Technique Parameter:
1. TV system: NTSC (if you need PAL, please leave a message)
2. Resolution: 480/520 TV lines
3. Lens angle:170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75Ω
7. Image Device: 1/4 inch color
8. Sensing area: 5.78 x 4.19mm
9. Sync. system: internal
10.Power supply: DC 12V
11,White Balance: Auto
12.Waterproof Class: ip 66
13.Effective pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: ≤150mA
16.Current consumption: 90mA Max
17.Storage temperature:-40°C to +60°C, RH95% Max
18.Minimum illumination:0.3Lux/F1.2
19.Operating Temperature:-30°C to +50°C, RH95%
Package Content:
1 x CCD CAR Camera
1 x 6M video cable
1 x 1M power cable
1 x User Manual
