Feature Product
- Backup Parking Camera for FORD TRANSIT CONNECT XLT CARGO VAN Minivan 2014-2017
- Each (aie) Camera kit includes: connect harness (plug and play), backup Camera, owner's manual with Installation instructions. Installation is simple, but professional Installation is recommended.
- Eliminate Dangerous Blind Spots: Thanks to the 165° viewing field, you'll be able to see far more than you could in the rearview mirrors alone. The guidelines on the screen provide a hazard-free driving path

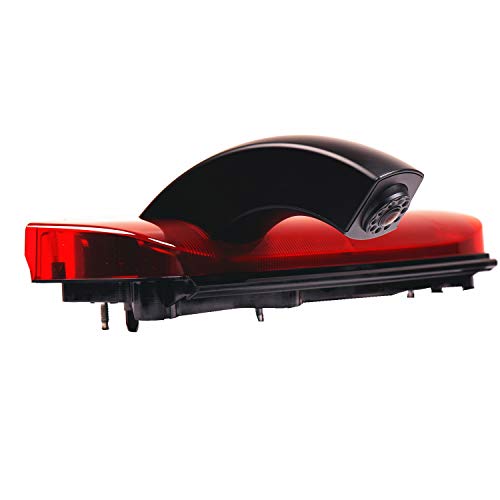

- This brake light reversing Camera will easily replace the factory brake light lens, the camera is screwed from the inside by the original holes Schaub, no need to drill holes.
- Uses standard 12V DC power supply found in most land vehicles. The Camera has a Heavy Duty Weather Proof 4-pin Connector. We also provide you a free additional 4-pin to RCA adapter. The connectors are compatible with this product as they would be with any VCR, DVD player, TV or Monitor.
Description
Car Reversing Backup Parking License Plate Rear View Camera Night Vision Camera
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2.Please allow 0.5-1 inch difference due to manual measurement.
3.Although instruction is included.Professional Installation Is Highly Recommended!
4.Please Compare The Rear view Backup Camera With Your Original One Before Purchasing！
This product could fit for all below models as expected:
Ford Transit Connect Transporter Minivan 2014 - 2017
Specification:
-Color: Black or White
-Camera Model: RVC-Cam 6
-Compatible Vehicle Make: Universal
-Camera Connection Type: Wired
-Resolution: 480-720 TVL
-Image device:1/3 inch color image sensor.
-TV system: NTSC
-Minimum illumination: 0.3Lux/F1.2
-Lens: 3.6mm/2.8mm/1.8mm
-Power Consumption: 250mA
-Power Supply: DC 12V
-Video Output: RCA connector
-Viewing angle: 150-170 Degree
-Operating temperature:-22 to 122 degrees centigrade Rh95%
Package Contents
1 x Car Rear view Camera
1 x Power Cable (1.5m/4.9ft)
1 x AV Cable (6m/19ft)
1 x User Manual
