Feature Product
- 7" digital color TFT LCD panel. Engineered for heavy-duty, commercial use
- Four camera inputs and six triggers. Single image, split-screen, or QuadView view modes
- DC auto source for switching triggers (turn signal compatible)
- Waterproof housing (IPX5), Backlit control buttons, Built-in audio speaker, AMPS and RAIL mounting provisions
- Manual/Auto Day/Night display brightness control, Optional Flush-Mount Installation Kit sold Separately (Part Number VOM74WPFM)
Description

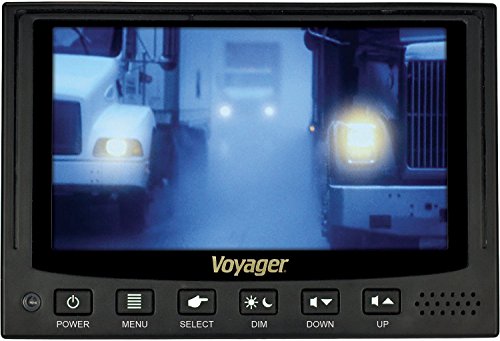

Voyager VOM74WP Heavy Duty 7" QuadView Multi-Screen Rear/Back View Color LCD Monitor with 4 Camera Inputs and 6 Triggers
This monitor, designed specifically for the Commercial Vehicle application, is truly in a class of its own. It can be used on all commercial vehicles, such as box trucks, over the road trucks, buses, agricultural applications and construction equipment. Customers love the multi-camera inputs and knowing that this product is durable and is built to handle their rugged applications.
Key Features- Engineered for heavy-duty, commercial use
- 7" digital color TFT LCD panel
- Single image, split-screen, or QuadView view modes
- Four camera inputs and six triggers
- DC auto source for switching triggers (turn signal compatible)
- Waterproof housing (IPX5)
- Backlit control buttons
- Built-in audio speaker
- AMPS and RAIL mounting provisions
- Manual/Auto Day/Night display brightness control
- Optional Flush-Mount Installation Kit sold Separately (Part Number VOM74WPFM)
- CE, FCC, e-Mark certified
- Power System: 12 / 24 VDC
- Operating Voltage Range: 10 ~ 32V
- Power Consumption (MAX): 600 mA
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -20°C to 70°C
- Operating Relative Humidity: 100%
- Overall Dimensions (inches): 1.2(D) x 5.2(H) x 7.7(W)
- Product Weight (unpackaged): 2 lbs. 3 oz.
- Video Output Signal Format: NTSC/PAL
- Video Signal Level: 1.0V p-p ; 75Ω
- Audio: 0.2 watt
- Resolution: 800(H) x 480(V)
- View Angles: 60°(TOP), 70°(BOTTOM),75°(LEFT, RIGHT)
- Brightness: 450 nit
- Contrast Ratio: 500:1
- Response Time: 5ms(R) 20ms(F)
- Display Format: 16:9
