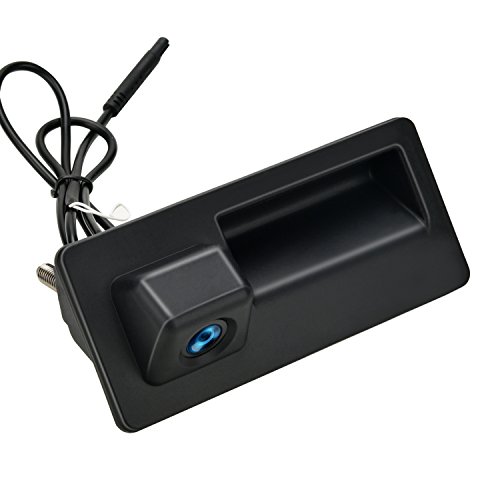

Canying Car Trunk Handle Camera Rear View HD Camera for Audi A4 A5 S5 Q3 Q5 for VW Passat Tiguan Golf Passat Touran Jetta Sharan Touareg

Feature Product

• Easy installation: Mount the camera to car's vehicle trunk handle position. Do not destroy the original car style, retain the original car trunk switch function.Note:It is with RCA connector.
• Shockproof,waterproof,anti-interference and resistance to high/low temperature
• HD RESOLUTION: 580 TV lines. 648*488 pixels.DSP digital chip,image clarity without distortion
• The Camera is with special design. it is with control wire for guide line. It is designed with guide line and you can choose without it by just cutting this control wire by DIY.
• 170 VIEWING ANGLE: 170 degree visible range works great with the blind spot

Description

Note: For after installed medias or screens with RCA video input only, NOT for orignal Car media!

It can be added with a Camera 12V DC Power Adapter Filter Rectifier to solve flickering problem if the screen flickers after installed

Compare the car handle size with camera size(Length: 11.2cm/width: 5cm). Suggested car models:
for Audi A4(8K) / A5 / S5 (8T) / Q5 / Q3 / A6L / A8L / RS6
for Volkswagen Tiguan
for Volkswagen Golf VI Variant from 2010 / Golf Plus from 2012
for Volkswagen Jetta 2011
for Volkswagen Passat from 2011
for Volkswagen Sharan 2011
for Volkswagen Touran 2011
for Volkswagen Touareg 2011
for Volkswagen Lavida
for Volkswagen Sagitar
(We have size picture but please allow 0.5-1 inch difference due to manual measurement.Please check and make sure the item is the one you need)

Technical parameters
Sensor:1/3" PC 1099
Image Sensor
Effective Pixels:976(H) x 496(V)
Resolution:650 TV lines
Lens Angle:170°(D)
Minimum Illumination:0.5 Lux
Exposure Control:
AES(auto electric shutter),1/60 ~ 1/100,000 sec.
White Balance:Auto
Gain Control:Auto
Video Output:1.0Vp-p, 75 Ohm
Working Voltage:DC 9-16V
Power Consumption:100 mA / DC12V
Operation Temperature:-30°C ~ +70°C
Storage Temperature:-40°C ~ +85°C
Waterproof:IP 67
Electronic shutter: NTSC

The product is easy installation and assembly, but Note:
1.This product is a 12V voltage.
2.When installing the product,be sure to use the specified drill,screws,etc. to avoid damage to the camera function
Unique Design:This backup camera is with Guide Line (Yes/No) Switcher. It is with Guide line as default.
Remember to turn off the power before switching
1.If you need a backup camera with distance scale line,you just install it without any operation.
2.If you need a backup camera without distance scale line,please cut the white wire.
