Feature Product

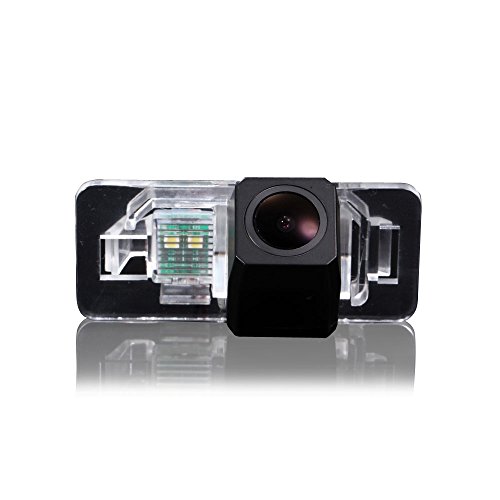

- Backup Parking vehicle Camera Suitable for BMW BMW E38 E39 E46 E60 E61 E65 E66 E90 E91 E92 735 740 745 750 760 530I/536Li/335i/328i/335i
- 170 degree visible range works great with the blind spot
- Package includes:1 x CCD Car Camera,1x user manual,1 x 6M video cable,1 X power supply cable
- Route the cable from tailgate to front dash, connect to display with universal RCA connector, you may need additional adapter (not included) if to connect factory radio
- Remark:This camera do not work well with original factory display/monitor, will work well with aftermarket display/monitor .Please check the dimension for fitting to your number plate light recess before purchasing
Description
This product could fit for all below models as expected:
BMW 3 Series M3/E46/E46CSL/E90/E91/E92/E93 1999-2011
1 Series：E82,E88
5 Series:E39,E60,E60N,E61,E61N
X Series:E53,E70,E71
X6:530I/536Li/335i/328i/335i/320i/330i/X1/520Li
E53 X5 2003/E46 318 2002/E60 545i 2004 clip size 57.6mm;the unit have 2 clip size 57.5mm or 59mm,please check your car license plate before buy it.
Technique Parameter:
1. TV system: NTSC (if you need PAL, please leave a message)
2. Resolution: 480/520 TV lines
3. Lens angle:170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75Ω
7. Image Device: 1/4 inch color
8. Sensing area: 5.78 x 4.19mm
9. Sync. system: internal
10.Power supply: DC 12V
11,White Balance: Auto
12.Waterproof Class: ip 66
13.Effective pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: ≤150mA
16.Current consumption: 90mA Max
17.Storage temperature:-40°C to +60°C, RH95% Max
18.Minimum illumination:0.3Lux/F1.2
19.Operating Temperature:-30°C to +50°C, RH95%
Package Content:
1 x Car CCD Camera
1 x 6M video cable
1 x 1M power cable
1 x User Manual
