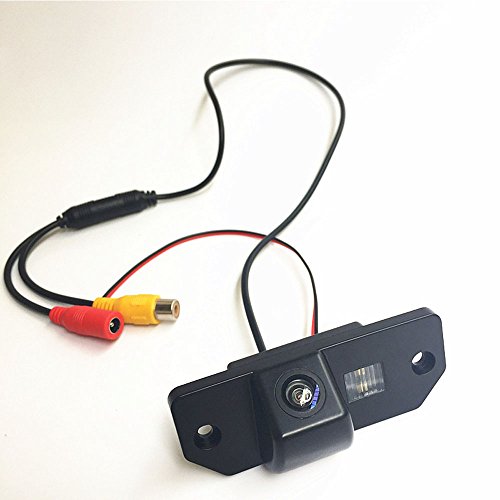

Waterproof Night vision CCD Parking backup reverse rear view camera rearview Camera for Ford Focus 2 sedan (2005-2011) C-Max

Feature Product

• New and High Quality 420 TV Lines HD Color Image sensor,effective Pixels: 720*540 pixels,support NTSC system
• Visual angle lens:170 degree visible range works great with the blind spot. built in night sensor, clear view even at night.
• Solid metal housing design.Shockproof /Waterproof and Weather-resistance,fit for all outdoor weather conditions.
• Unique Design:You can chose distance scale line or no and can be choosing mirror / non-mirror switcher,it completely depend on your decision.
• Easy install and small size. Upside & Stealth Mount: When installing backup camera, suggest that you install it in a lower position. Compatible for most car models including SUV, Pickup, Truck, Mini car, etc.

Description

The origional car camera is easy to use and install, design by license, with waterproof function and 170 degrees lens.

------------------------------------------------------------------------------------------------------
Product Features:
1. Original fitting by replacing the license light(or install on Pre-setting hole)
2. Smart size for hidden installation.
3. 1/3"CCD7070 (CCD PC3089 ) with night vision
4. Lens: 170 degrees
5. Waterproof(IP68) and dust-proof car camera
6. with car reversing reference line(optional)car camera.
7. License light available on partial models.
8. Night vision available and high definition car camera.
9. Day /Night sensor for automatic adjustment, minimum illumination auto fill light.

Installation Guides:
1. Get out the license light;( or install on Pre-setting hole)
2. Get the rear view lens lines across the license light original position;
3. fasten the camera with the buckle which place in the two sides of the camera;
4. Connect the lens built-in license light power lines to the original license light power lines;
5. Connect the reverse lens switching lines;
6. Connect the camera's signal line to the signal extension line;
7. Connect the car's reverse light line to camera's video cable;
8. Check if all lines are correct connected and arranged;
9. Debug the working effects of the camera and the license light;
10. Cover the car trunk. Finished.

Accessories:
1. AV cable 6 meters, DC cable 1.5 meter
2. User Manual
