Z-DCYX Car Reverse Camera System,960P 4CH Mobile DVR Video Recorder + 4X 960P AHD Front Side Rear View Cameras + 7" HD VGA TFT LCD Color Monitor

Feature Product

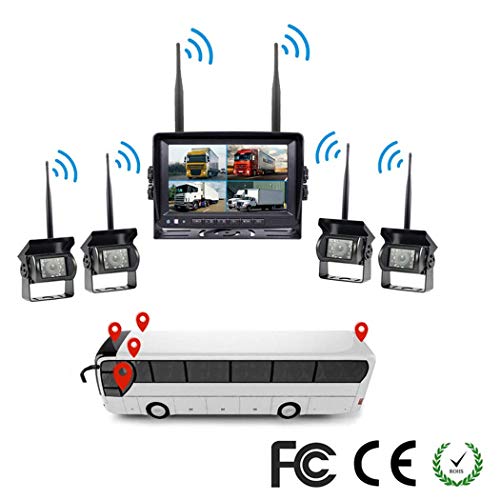

• 7 inch LCD TFT car monitor (with mounting bracket) + 4x18 LED waterproof night vision infrared rear camera + mounting accessories.
• 18 LED wireless rear camera: PZ607 camera has a wire for reversing, PZ607 camera has no wires for mirror observation, using the latest generation of image sensor chip, the color effect is very good.
• Four screens with the same display: 7-inch (16:9) TFT LCD car/vehicle/automatic rear view color display, high resolution image, four channel video input, video 1, 2, 3, 4 simultaneous display, The working voltage is DC9 -35V.
• The display has a built-in 2.4 GHz digital wireless video signal receiver that is designed to withstand pulse voltage design and protection circuitry. Easy to install, accurate transmission signal, wide viewing angle, 120 degree lens angle.
• Applicable to buses, long-distance buses, agricultural tractors, heavy goods vehicles, rail transit vehicles, municipal road machinery and equipment vehicles, factory supermarket forklifts, mining machinery and equipment vehicles.

Description

2.4G digital signal wireless 7 inch four segmentation image
Video input: video 1, video 2, video 3, video 4, video 1+2+3+4 four display
Working frequency: 2400-2483.5 Mhz
Standard: 2370Mhz
Transmission distance: 100 meters
Video decompression method: MPEG 4
Transmission frequency: 18 dBm
Transmission speed: 12 Mbps
Spread spectrum: frequency hopping
Frequency hopping rate: 1200/S
Screen size: 7 inch screen
Type: 16:9 widescreen
Resolution: 800R.G.B x480 dots
System: PAL/NTSC
Working voltage: 12V/24V DC
Power consumption: ≤8.64W
Working temperature: -10 °Cto +65 °C

2.4GHz digital wireless camera
System: NTSC: 510*492 pixels, PAL: 510*582 pixels
Resolution: 480 TVL
Lens: 2.5mm
Minimum illumination: 0Lux (LED ON)
Infrared light: 18pcs
Night Vision Distance: 15 meters
Waterproof rating: IP67
Angle: 120°
Working voltage: 12/24V DC
Working temperature: -20 ° C ~ + 70 ° C
Shell material: aluminum alloy
Bracket material: iron

4 wireless cameras
1 wireless display
Power cord 5
6 antennas
Manual 1
