Feature Product

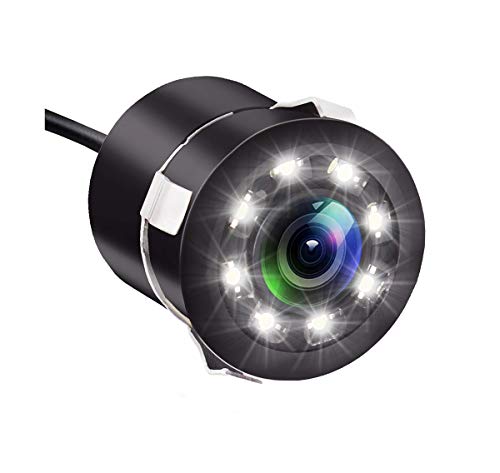

- Car backup camera - HD reversing rear view, non-destructive installation. The screen immediately shows the rear condition when reversing with 170° angle viewing, decreasing reverse the line of sight dead angle and improving the safety factor of reversing.
- Applicable - Enjoy universal use on all types of cars, Pickup truck, business car, family car, all 12V car.
- Super night vision HD camera - with CMOS imaging sensor, 928 * 520 pixels HD camera with 8 led lighting night vision, making your night driving/reversing safer.
- IP67 Waterproof - Waterproof standards is up to real IP67. No worry about fog or mist inside the camera even driving in rainy days.
- Easy Installation - Simple and modest design and small size won't draw any attention. Car backup camera doesn't require drilling during the mounting as it should be fixed to the existing license plate holes.
Description
Specifications:
Image sensor: 1/3" CCD
Image sensor: PC7070
Effective pixels: 928*520 pixels
Resolution: 520 TV lines
Lens Angle: 170°
TV System: NTSC/PAL
White balance: Auto
Waterproof: IP67
Power supply: DC 12V
Minimum illumination: 0.1lux
Video output: RCA connector, 1.0Vp-p, 75ohm
Current Consumption: 60mA
Operating Temperature: --22℉~176℉, RH95% Max.
Storage temperature: -40℉ ~ 176℉, RH90% Max.
Drill hole diameter: approx. 18.5mm
Installations:
1) Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)
2) Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
3) Connect the video cable of the camera to the extension cord.
4) Connect the extension cable to the car monitor.
5) You will see the images when your car is in reverse shift.
Package Included:
1pc x Drill Hole Style Car Rear View Camera
1pc x Video Cable
1pc x Power Cable
1pc x Hole Saw
1pc x User Manual
