Feature Product
- 【Digital wireless backup camera】Based on upgrade 2nd generation digital wireless backup camera, the signal can stay smooth, clear and 100% no interference then Analog wireless transmitter even speeds up to 100 mile, the signals range over 150ft on open empty area, 40ft - 45ft on Vehicle range. Also easy to set up as no additional wiring.
- 【Full-time Backup camera】With the backup camera kit, it will act as a full-time rear-view monitor, automatically show the back up Images (connected to continuous power), avoid reversing blind spots, ensure the safety of reversing especially for the truck, RV, Camper, Trailer, 5th wheel and etc.
- 【Waterproof reverse camera & Super night vision】IP69K Waterproof allows you reversing safety even in rainy day, 180°rot-able angel easy to hook up, Digital High definition CMOS Sensor and 150°viewing angle will present clear image, while the 18 Infrared Lights triggered by light intensity, give low light compensation during the night ensure parking safety.
- 【Backup camera with monitor】The 7'' LCD display powered by cigarette lighter or directly connecting to a 12v source fuse box for constantly use, the monitor will full Screen display the reverse images ; you can fix the monitor on dashboard.
- 【Wireless backup camera for RV, Trucks, Trailer】The system Voltage Range From 12-24V DC Power to Accommodate a Wide Variety of Large Vehicle Trucks/ RVs/ Trailers/ Bus/ 5th Wheel/ camper/ Semi-Trailer/ Travel trailer/ camper/ hook trailer etc. Full 12m Warranty, email replies within 24H, and 100% Satisfaction Guarantee. Any inquiry please feel free to contact us at support@toguard.cc
Description

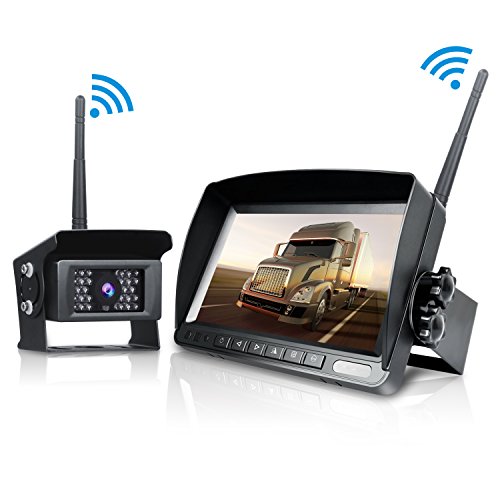

Perfect Digital Wireless backup camera for Truck/Trailer/RV/Bus/RV/Pickups/Van,etc
√Digital Stable Signal
--Digital wireless with 100% No Interference, camera wireless signal will stay smooth.
√IP69 Waterproof--The highest water proof level completely makes it work well under damp environment.
√Safe Driving At Night--Wireless camera owns 28 IR Lights bring you the best night vision experience, say goodbye to the dark.
√High Resolution--684*512 Pixels offer the best viewing experience to you.
Specification:
Wireless Rear View Monitor;
-Type: Screen Size: 7 inch(16:9);
-Resolution: 800 x 480;
-Ultra-low power consumption, to prevent over heat;
-Signal format: PAL / NTSC. Compatible with all signal formats;
-Rated Voltage: DC 12V;
-Work temp: 14℉~149℉;
-storage temperature: -13℉~176℉
Wireless Reverse Camera
-Image sensor: IR Color CMOS Camera;
-Resolution:600 TV line;
-28 infrared lights;
-Power: DC 11V-32V;
-Waterproof grade:IP69;
-Angel:170 degree;
-Effective Pixels:684 x 512pixels;
-Signal format: PAL/NTSC;
- Working temperature: -4℉~158℉;
-Storage temperature: -40℉~185℉;
EASY INSTALLATION
1.Power the monitor with the included Cigarette lighter power adapter.(DC11V-32V).
2.Connect the camera external power cable to the reverse light.(DC11V-32V,Red lear to Positive,Black lead to Ground).
3.Connect the external power cable to the camera and install the camera, then route the excess cable.
4.Now when you put your car in Reverse Gear, the camera will automatically turn on.
Tips:
★If the image does not display, you need to pair the camera and the monitor, press and hold the pairing button on.
