Feature Product

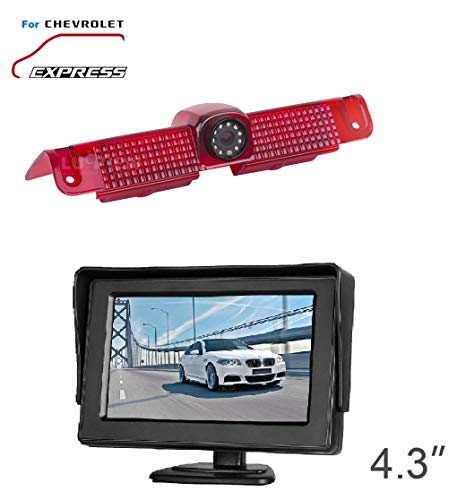

- Backup Parking Camera Suitable for Transporter Chevrolet Express/GMC SAVANA 2003-2018/Explorer Vans
- Reversing camera especially for use on the transporter,Easy replacement against the factory 3rd brake light .
- Package includes:1 x CCD Car Camera+ 4.3TFT Monitor Kit,1x user manual,1 x 10M video cable,1 X power supply cable
- Route the cable from brake light to front dash, connect to display with universal RCA connector, you may need additional adapter (not included) if to connect factory radio
- Remark:This camera do not work well with original factory display/monitor, will work well with aftermarket display/monitor .Please check the dimension for fitting to your brake light recess before purchasing
Description
Dear customer,Please must check the camera size and appearance before place a order, see if can fit your car license plate lamp place size and appearance! Because the same car model in different countries may have some difference,please check the camera size and compare the installation of your car carefully to avoid mistake.
This product could fit for all below models as expected:
ChevroletExpress/GMC SAVANA 2010-2018/Explorer Vans
Technique Parameter:
1. TV system: NTSC (if you need PAL, please leave a message)
2. Resolution: 480/520 TV lines
3. Lens angle:170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75Ω
7. Image Device: 1/4 inch color
8. Sensing area: 5.78 x 4.19mm
9. Sync. system: internal
10.Power supply: DC 12V
11,White Balance: Auto
12.Waterproof Class: ip 66
13.Effective pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: ≤150mA
16.Current consumption: 90mA Max
17.Storage temperature:-40°C to +60°C, RH95% Max
18.Minimum illumination:0.3Lux/F1.2
19.Operating Temperature:-30°C to +50°C, RH95%
Package Content:
1 x CCD CAR Camera
1 x 6M video cable
1 x 1M power cable
1 x User Manual
