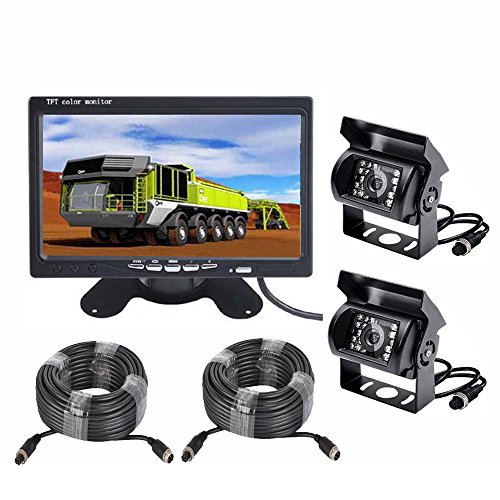

Vehicle Backup Camera and Monitor Kit,2 x IR Night Vision Reverse Camera 4 Pin + 7 inch Car Rear View Monitor Parking Assistance System with 15m Cable For RV Truck Trailer Bus Camper Motorhome

Feature Product

• 12V/24V 4Pin Car reversing Camera and Monitor Kit Parking Assistance System avoid blind spots when backing your vehicle,Hard wired version Camera system guarantees safe and clear and stable reversing image. Come with remote controller and Dash Bracket
• It came with 2 back up cameras IP68 waterproof rear camera with 4-Pin Aircraft Connector plug,IR infrared lights night vison clearly at night HD Mirror image without grid lines rear view camera and 2.8mm lens (120°horizontal wide view angle )
• It came with 2 x 15m/49ft 4Pin Aviation Extension long cable for RV Bus Pickup Truck Trailer Van Motorhome Schoolbus Lorry 5th wheel Camper and All other heavy Duty
• Rearview screen Monitor with high resolution image (800x480 Pixels), full color display and low power consumption, nice size display and clear,can adjustable brightness, contrast and color. Image can be rotated horizontally and vertically for mirror or none mirror viewing with 2 channel video input,V1/V2 button switch,2 connector plug,V2 is remote by Blue wire for reversing use priority,can switch back and front between cameras easily
• Monitor will automatically switch for V2 when the reversing gear is selected( Monitor blue cable need to connect for gearbox reversing trigger+)

Description

Only need to connect the monitor power wire:

Red wire to car positive,
Black wire to GND,
Green/Blue wire to reversing gear trigger + (or No need to connect)
The 4Pin cable Already build with the video and power
No need to connect power cable for camera.
easy to install easy to use

This rear view camera monitor system is support reversing used or permanently used

7 inch CAR TFT LCD MONITOR DC 12V-24V

Display Size:7.0 Inch
Resolution :800*480
System :PAL/NTSC Auto
Power requirement:DC 12V-24V
Consumption:6W
Video:2 channel video input; V1/V2 switch,
Rear-view: V2 auto reverse when reversing gear trigger activated
Net Weight:Approx. 743g

18 IR LED Car HD Color Rear View Camera

Image sensor:HD 7070 mirror image without Grid Lines
TV system : PAL
Lens: 2.8mm(120 View angle )
Number of pixels:720(H)*586(V)
Horizontal Resolution: 480 TV Lines
Scan frequency:50Hz-60Hz
S/N Ratio:≥48dB(AGC OFF)
Minimum illumination:0 LUX
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision:Yes
Video Output:1.0Vp-p.1.5ω.4Pin Connector
Synchronous System:International Synchronization
work Temperature:-20°C~+60°C
Power Requirement: DC 12V-24V
Focal distances:30mm to infinite
Weight: Approx 300g
Waterproof:IP 68

Package included:

1 x 4Pin 7" Rearview Monitor
1 x Dashboard Bracket
1 x Remote controller
1 x Monitor Power Video Harness Cable
2 x 4Pin 18 LED Rear View Camera
2 X 4Pin 15M/49ft Cable
