- 7" TFT LCD monitor,Available for VCD/DVD/Camera, 2 channels video input, full color display. auto white balance
- 18 infrared lamps reverse camera, high-resolution picture, night vision up to 10-15 meters
- IP 68 waterproof IR camera with 120° wide view angle(No Guide Lines)
- 15M 4 Pins Extended Aviation Connector Cord: Strong anti-interference, more close connection, easy to install.
- Parking assistant can helps in preventing accidents while driving in reverse by avoiding children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space
Item description:
18 IR reverse camera, high-resolution picture
7" TFT LCD monitor
Available for VCD/DVD/Camera
2 channels video input, full color display. auto white balance
Automatic back sight function for car backing
100% waterproof IR camera with 120° wide view angle
18 infrared lamps, night vision up to 10-15 meters
Can easily adjust the camera installation angle in multi-level
Headrest style installation, support screen rotation,
Only need to connect the monitor power cable :red to car 12v+,Black to GND,Green to reversing system 12v+ is ok,No need to connect power cable for camera.
easy to mount & easy to use
7" CAR TFT LCD MONITOR 12V
Display Size 7.0 Inch
Resolution 480(W) x RGB x 234(H)
System PAL&NTSC Auto
Power requirement DC 12V
Consumption 6W
Video 2-channel video input; V1/V2 switch
Net Weight Approx. 743g
18 IR LED Car Reverse CCD COLOR CAMERA
Image sensor 1/4" Color Sharp CCD
TV system : PAL
Lens: 2.8mm(120 View angle )
Number of pixels: 720(H)*586(V)
Horizontal Resolution: 420 TV Lines
Scan frequency: 50Hz ~60Hz
S/N Ratio: ≥48dB(AGC OFF)
Minimum illumination: 0 LUX
Backlight compensation: Auto
White Balance: Auto Tracing
Auto Gain Control: Automatic
Night vision: Yes
Video Output: 1.0Vp-p.1.5ω. RCA Connector
Synchronous System: International Synchronization
work Temperature: - 20°C ~ +60°C
Power Requirement : DC 12 V
Focal distances: 30mm to infinite
Weight: Approx. 300g
Waterproof:IP 66

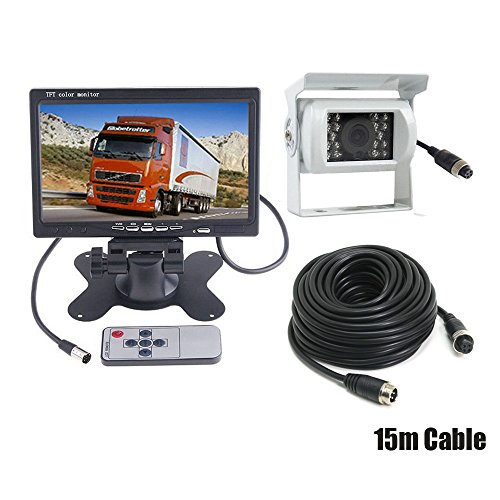

Packaging include:
1 x 7inch 4Pin Rear view Monitor
1 x Monitor Bracket
1 x Remote Controller (Cell Battery maybe remove for mail)
1 x Power & Video Connect Cable
1 x White 18 LED Reversing Camera(Mirror image)
1 X 15M video Cable (Other seller only with 10m cable)
