Feature Product
- You can view installation video by search video ID XfVa2eciry0 on YouTube or contact us get link.Very easy install, the system can be powered with a single power from reverse lights for rear view only or fuse box / running lights / Radio / Cigarette lighter for full time view.
- IP68 Waterproof license plate Color HD backup camera 135° viewing angle with 7 LED IR light Night Vision see clearly at night.
- Monitor have V1/V2 two video inputs, V2 has priority, so normally the rear view camera wire to V2, you can wire another front/side camera to V1, when you driving, you can view front by V1,when you turn on reverse and off, the V2 will working automatically on and off too.

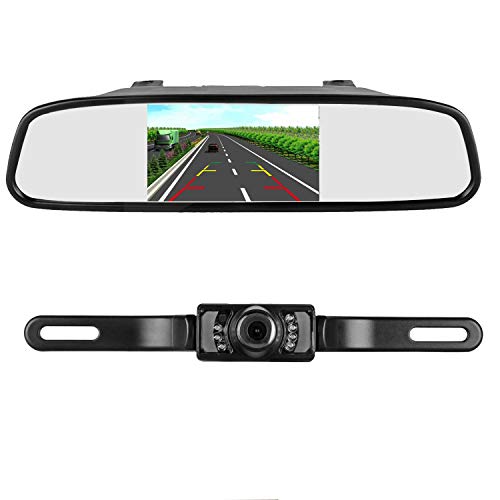

- 4.3 Mirror display monitor easy to install just cover on vehicle original factory mirror with Extendable clips.
- We provided a professional instructions and installation videos in package, please contact us with any installatlation problem and quality issue ,any need,just contact : iStrong08@outlook.com
Description
1. Can add a additional front/side/rear view camera to current system.(Monitor with two way video inputs).
2. The monitor will turn on auto when powered and video signals inputs,after it will turn off auto.
3. The screen pictures are color HD picture at days.
4.The Camera is IP68 waterproof and IR Night Vision.
5.The system can be set up to work in reversing or working constantly in driving optional.
6. The whole system can be hooked up with single power supply (reverse lights or cigaratte lighter ) easy to install.
7.The monitor can be fixed on dash or the mount is removeable to hook anywhere you like.
8.We provided instructions manual and video for all customer,contact us if you didn't get it.
9.2 year warranty .Have any need ,please contact us: iStrong08@outlook.com
4.3 Mirror Monitor Specification:
The product itself 100% safety and met any FCC/CE/RoHS/UL/IP6X standard
-Displays: 4.3 inch (diagonal length)
-Resolution: 480 (W) × 272 (H)
-Ultra-low power consumption, to prevent over heat
-Signal format: PAL / NTSC. Compatible with all signal formats
-Rated Voltage: 9V - 35V,400mA-20A
Rear view Camera
Specification:
The product itself 100% safety and met any FCC/CE/RoHS/UL/IP6X standard
Image sensor: PC7070 (Distance reference marking display)
Resolution:420 TV line
S/N Radio: better than 48db
Video output: RCA connector, 1.0vp-p,750hm
Power: 9V-12V DC ,400mA-20A
Waterproof grade: IP68
Effective Pixels:648X488pixels/NTSC
Package Includes:
1 x 4.3 Mirror Monitor
1 x Lisence Plate Rearview Camera
2 x Power Cable 8.2ft
1 x Video Cable 23.5ft
1 x User Manual
