Feature Product

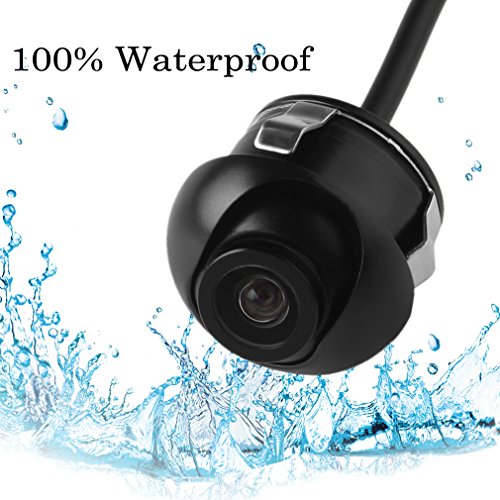

- Anti fog glass, CCD imaging sensor and support NTSC / PAL video system.
- High grade of waterproofing: IP68 with good performance in rainy days.
- Easy to install, can help to avoid incidents and accidents abrasion well.
- Its simple and modest design and small size won't draw any attention.
- High-definition and 170 degree wide viewing angle, suitable for all 12V cars, trucks, RV, etc.
Description
Specifications:
- Image Sensor: CCD 7070
- TV system: NTSC
- Horizontal Resolution: 480 TV lines
- Effective Pixels: NTSC: 640(W) x 480(H) - Lens: 18.5mm
- View Angle: 170 degree
- S/N Ratio: >48dB
- Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
- Video Output: 1.0Vpp, 75Ohm
- White Balance: Auto
- Power: DC 12V
- Water-proof: IP68
- Video Cable Length: 6m
- Power Supply Cable Length: 1.5m
- Package Weight: 160g
- Package Dimensions(Length*Width*High): 140mm * 85mm * 45mm
Notes:
1. The mirror image control line is designed to switch the front view to rear view.
2. Cut green cable: Cancel Parking Lines.
3. Cut white cable: Switch mirror(rear view) to normal image(front view).
Package Includes:
1 x Car Front / Rear View Camera
1 x Video Cable
1 x Power Cable
1 x Screw (for bracket mount)
1 x Diameter hole saw
PONPY After Service: 30 Days Money Back Guarantee, 12 Months Warranty!
