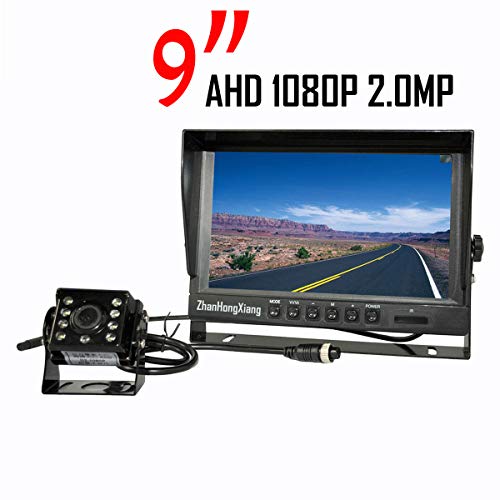

Upgraded Vehicle Backup Rear View Car Truck Camera and Monitor System,IP69 Waterproof Night Vision HD1080P Rear Camera + 9" IPS Monitor 12V-24V with 4 Pin 5m / 15m Cable for Bus Trailer RV Camper

Feature Product

• Upgraded Car Backup Camera and Monitor Kit Parking Assistance System 12V/24V : 9 inch IPS Monitor 1080P + 8 LED Night Vision 4Pin AHD 2 Megapixel Reverse Camera and 4 Pin 5m/15m Connector Cable. Hard wired version Camera system guarantees safe and clear mirror image without Grid lines.
• 5m/16ft + 15m/49ft 4-Pin Extension cable for Long Bus Truck Trailer RV Van Motorhome Schoolbus Camper Lorry 5th wheel and All other heavy Duty
• IP69 Waterproof Rear Camera with 4 Pin Connector, 8 LED lights Night Vison view clearly at night, 100% Not Wash Out SHARP CCD Sensor HD Mirror image no Distance Lines Rear View Camera, and 2.1mm lens (170° horizontal wide view angle )
• 4Pin 9inch IPS monitor 1080P, full color display and low power consumption, adjustable brightness, contrast and color. Image can be rotated horizontally and vertically for mirror or none mirror viewing with 2 channel video input,V1/V2 button switch,2 video input connect plug,V2 is remote by Blue wire for reversing use priority
• Monitor will automatically switch for V2 when the reversing gear is selected( Monitor blue cable need to connect for gearbox reversing trigger+)

Description

Only need to connect the monitor power wire with car electronics sytem:
Red wire to car Positive/Live,
Black wire to GND,
Green/Blue wire to reversing gear Trigger+ (or No need to connect)
easy to install easy to use

This rear view camera monitor system is support reversing used or permanently used

CAR TFT LCD MONITOR

Display Size: 9 Inch AHD Screen
Power requirement:DC 12V-24V
Consumption:6W
Video:2 channel video input;
V1/V2 switch,(V2 for reversing parking backup view priority)
Net Weight:Approx. 1000g

AHD 8 LED Car Rear View Camera
100% Not Wash Out SHARP CCD Sensor Mirror image without Grid Lines
TV system:PAL/NTSC
Lens:2.1mm(170 View angle )
Number of pixels: 2 Megapixel Camera
Minimum illumination:0 LUX
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision:Yes
Video Output:4Pin Connector
work Temperature:-20°C~+60°C
Power Requirement: DC 12V-24V
Weight: Approx 200g
Waterproof:IP 69

Package included:

1 x 4Pin 9" AHD Rear view Monitor
1 x Dashboard Bracket
1 x Remote controller
1 x Monitor Power Video Harness Cable
1 x 4Pin 8 LED Rear View Camera
1 x 4Pin 15M/49ft Cable
1 x 4pin 5M/16ft Cable
