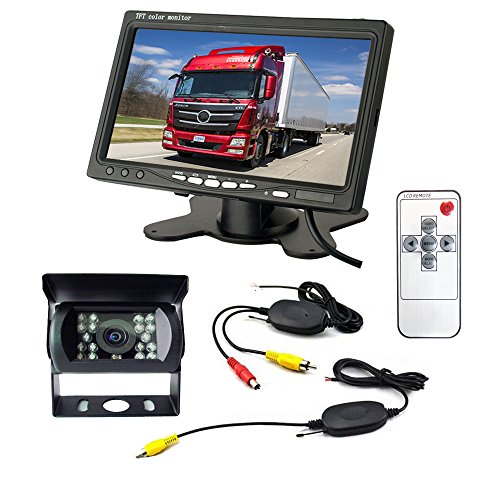

Wireless 18 LED IR Night Vision Waterproof Reversing Backup Camera 12V+ 7" TFT Car LCD Monitor for Bus Truck Trailer RV Auto Vehicle Rear View Kit Parking Assistance System (Black, 7" Bracket Monitor)

Feature Product

• 2 channels video input,full color display.Automatic back sight function for car backing with V2 display
• HD 7070 Mirror imaging sensor with No Grid Lines Waterproof IP 68 HD Car Rear View Camera
• Monitor have V1/V2 two video inputs,V2 has priority, so normally the rear view camera wire to V2, you can wire another front/side camera to V1, when you driving, you can view front by V1,when you turn on reverse and off, the V2 will working automatically on and off by you wire the blue wire to power positive
• Support All 12V Car Vehicle,Best for 12V BUS,Truck,RV,Mortorhome,Van etc
• Hard Metal Cased Camera,Waterproof and Mud proof, with 18 individual Infrared image clearly at night, 140 degree horizontal wide view angle, 120 degree vertical view angle

Description

The monitor:
Specification:
7 inch TFT Color LCD Car Rear View Camera Monitor
Display Screen:
- Screen Size: 7 inch
- Display Component: Color TFT LCD
- Screen ratio 16:9/4:3 adjustable
- Resolution: 800 x 480 Pixels
- Contrast Ratio: 100:1
Housing Material: ABS
Video Frequency: PAL/NTSC

Rear View Camera

Image Sensor:HD 7070 Mirror No Grid Lines
Horizontal Resolution:480 TVL
Minimum Illumination:0Lux
Number of pixels:720(H)*586(V)
Lens: 2.8mm
Diagonal Viewing Angle:120 degree
Signal to noise ratio:>48db(AGC OFF)
TV System:PAL
Scan frequency:50Hz-60Hz
Electronic Shutter: 1/60 ~ 1/15,000sec
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision: Yes
Synchronous System:International Synchronization
work Temperature: -20°C~+60°C
Waterproof:IP 68
Video Output:RCA Connetor interface,1.0Vp-p.1.5ω.
Power:DC 12V
Current Consumption:Less than 50MA

Wireless Transmitter and Receiver:
Wireless transmission of video signal,
no cabling hassle Connects to rear-view camera and front video screen
Take some minutes get your camera become a wireless camera Video signal transmission via 2.4 GHz
radio signal Range: 10M
Input voltage: 12V DC

Package Content
1x 7" Car LCD Monitor (Bracket)
1x Harness Cable
1x 18 LED Rear View Camera (Black)
1x Wireless Transmitter
1x Wireless Receiver
1x English User Manual
