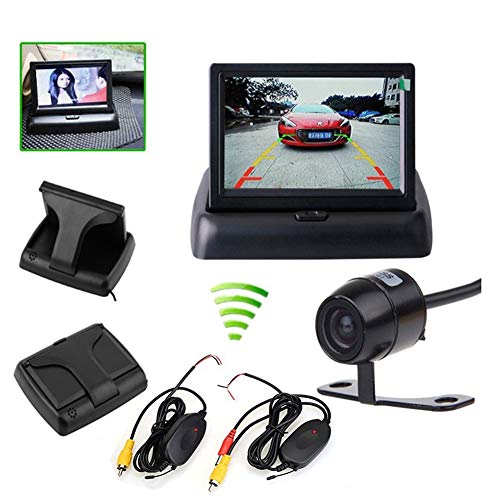

Wireless Backup Camera Monitor Kit HD Car Reverse Rear View Camera + 4.3 inch TFT LCD Folding Monitor Parking Assistance System

Feature Product

• 2.4Ghz Wireless receiver and transmitter for back up camera video transfer,No hassing for link the video cable from the camera to monitor around your vehicle,
• 4.3 inch TFT LCD folding screen Monitor,there is one button to push up the screen by your finger when you need to use the system
• Waterproof IP68 camera build with 170 degree wide view angle and Grid Lines for reverse safely used
• support all 12v vehicle reversing rear view
• Applicable to variety of Vehicles: car, truck, RV, mini-van etc Can help avoid incidents and the blind area behind your vehicle

Description

Backup camera

1.Used both in car and home
2.Support PAL Video system
3.High-definition and wide viewing angle
4.Applicable to variety of Vehicles: car, truck, RV, mini-van etc
5.Can help avoid incidents and accidents abrasion well
image device HD7070 Mirror with Grid Lines
Effective pixels:658 x 462 Pixels
Sensing area:5.961 x 4.276mm
Horizontal resolution 520TVL
Shutter speed 1/60-20us
Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led)
Lens Angle:1.8mm/170°
White balance Auto
Color Black
Waterproof:IP68
Video output:1.0Vp-p, 75ohm
Current Consumption :No More 300mA
Power supply:DC 12V
Operating Temperature:-20°C~ 60°C, RH95% Max.

4.3 inch Car LCD Foldable Monitor

2-channel video input
Screen Size: 4.3 inch TFT LCD (LED)
Resolution: 480 (W)*RGB*272(H)
Color Display: Yes - RGB
Video System: AUTO NTSC/PAL

wireless kit

*Take one minute get your camera become a wireless camera
*Work Range:Up to about 50m(Hollowness)
*Power: DC 12V
*Transmitter/Receiver Cable Length:1.5m

Camera conenct the transmitter,
Transmitter conenct to the reversing light 12v+/-
Receiver video conenct to the monitor,
Receiver power conenct with the gearbox reversing trigger wire 12v+/-
When reversing gear select,the monitor and receiver/transmitter/camera automatic to turn on,then you can see the video from the camera by the monitor
When completed reverse,the monitor will turn off
Please do not mixup which one is receiver,
which one is transmitter,Or it will not work
Transmitter turn on with the blue light
Receiver turn on with the red light

Package included:
* 1 x Backup Camera (12V )
* 1 x 4.3inch Folding monitor
* 1 x DC cable for monitor
* 1 x wireless Transmitter /Receiver
