MASO Truck Rearview Backup Cameras with 10M Cable, Waterproof 18 IR LEDs 170 Degree 4 Pins High Definition CCD Vehicle Reversing Camera for Heavy Duty Car Van Trailer Bus Caravans ...

Feature Product

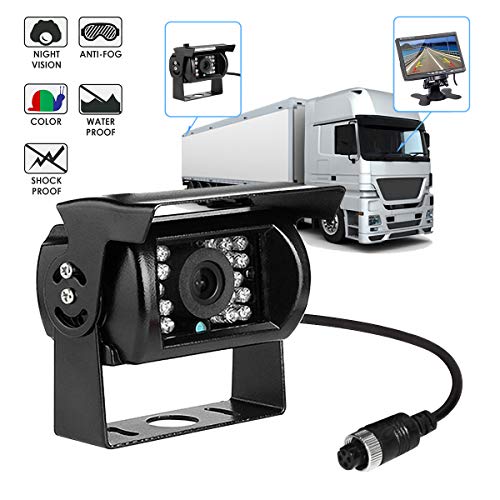

• ★MASO New Design 4pin din Waterproof CCD Reversing Camera With Night Vison For Trucks/ Caravans/ Buses/ Motorhome/ Horse Trailer.Heavy duty CCD camera is hard metal cased, waterproof and mud proof.
• ★High Quality Image:CCD image sensor outputs digital signals that has better picture's clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances.
• ★Easy Installing: Waterproof camera body with a sunvisor and metal bracket. Easy to mount on any flat surface of the vehicle.
• ★Long Lifetime: Can last for longer without heating up, so you can show the clear view at all time.
• ★100% SATISFIED GUARANTEE - We offer ONE YEAR free warranty as with CE and ROSH Certification., customers can rest assured that the use of, if the backup rearview cam is damaged or can not be used, the customer can contact us, we will provide customers with satisfactory solutions.

Description

Specification:
Lens: 2.0cm
Colour: Black
TV system: PAL
Signal to noise ratio: greater than 48dB
Waterproof: IP66
Power supply: DC 12V & plusmn; 10%
White Balance: Auto
Video cable length: 6m
Video output: 1.0Vpp, 75 ohms
Length angle: 120 degrees 170 degrees
Camera cable length: 59cm
Scanning system: 2: 1 staggered
Power cord length: 42cm
Image reversal: left and right mirror
Waterproof rating: IP66 high
Horizontal resolution: 420 TV lines
Camera size: 4 × 2.5 × 2.1 cm
Effective pixels: PAL Format: 510 (H) × 492 (V)
Current consumption: no more than 300mA
Image sensor: CMOS 1/4 mt9v125 or pc1030, color
Minimum illumination: 0.2 Hercules / F1.8 (0 Guinness LED)
Storage temperature: 30 ° C + 60 ° C, relative humidity 95% of the maximum;
Operating temperature: 20 ° C + 60 ° C, relative humidity 95% of the maximum;
Electronic shutter: 1/60 to 1/100000 seconds, 1/50 to 1/100000 seconds

Installation:
1, in your car's keyhole to install the camera.
2, adjust the lens of the best location.
3, connect the power cord to your car DC 12V power supply system.
4, the video output (yellow) to connect to the vehicle display.

Package:
1 × video cable
1 × power cable
1 × car rear front view mirror
2 screws (bracket mounting)
