Feature Product

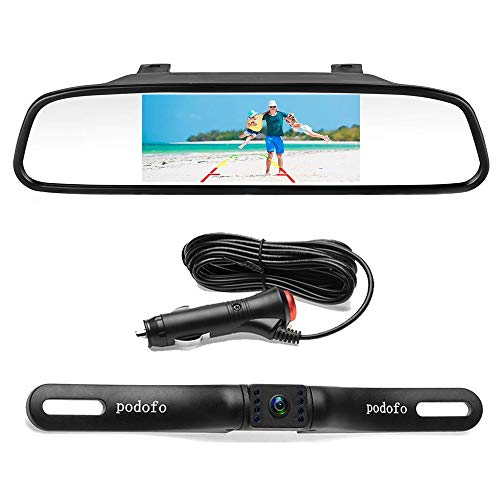

- Car back up camera kit: upgrade waterproof rear view license plate camera, 4.3 inch LCD display mirror monitor with a 3.5M Universal car charger.
- Easy Installation: It comes with a 3.5 meters universal car charger, for getting the power directly from the cigarette lighter to the monitor. No need to wired it from the ACC, eliminating the hassles of assembly many cables.
- IP68 Waterproof license plated backup camera: no worry about the foggy or water inside, works great at rainy day. Color HD CMOS image, 140°wide viewing angle with 7 LED IR light Night Vision see clearly at night.
- 4.3" TFT LCD rearview mirror monitor: Anti-glare technology mirror design; High definition 480 x 272; Adjustable brightness, contrast. It covers your original rear view mirror display.
- Podofo customers service: All message will be respond within a 24 hour frame. 30-day money back guarantee, 12 month replacement warranty and lifetime support guarantee -- podofo@126.com.
Description
Specification:
4.3" LCD TFT Mirror Screen:
Show foot size: 4.3 inches. Best for the safe use of Rear view;
Displays: TFT-LCD. high-definition screen, make the image clearer, more vivid colors;
Resolution: 480 (H) × 272 (V);
Power: ≤ 2W. Ultra-low power consumption, to prevent over heat.
Video Input:
AV1/AV2 video input
AV2 VCD / DVD video output signal (system default),
AV1 connect reversing camera (reversing automatically switch to);
Signal format: PAL / NTSC / AUTO. Compatible with all signal formats.
Working Voltage: DC 12V
IP68 Waterproof License Plate Camera:
Format: NTSC / PAL 【Optional】
Maximum angle: 140 degrees horizontal
Waterproof grade: IP68
Optical lens: EFL = 1.8mm
Resolution: 480 TV lines
SNR: 48dB or greater
Electronic Shutter Speed: 1/50 to 1/100, 000 seconds, 1/60 to 1/100, 000 seconds
Video Output: Composite video (1.0Vpp, 75ohm, RCA)
Current consumption: 90mA (about 130ma after IR on)
Power supply: 9V-35V
Operating ambient temperature: -20 to +70°C, 95% RH maximum
Storage temperature: -40 to + 100 °C, 95% RH maximum
Image Flip: left mirror phase
Size: suitable for almost all of the license plate
Scale line: about 0.5M-3M
Car Charger:
Input & output voltage: 12-24V
Cable length: 3.5 meters
DC connector size: 5.5mm
There is a LED button on the car charger, and it will light on when you turn on.
Package Include:
1 x 4.3 inch LCD mirror monitor
1 x Waterproof license plate camera
1 x 3.5 maters car charger
1 x Power cable
1 x 6 meters video cable
1 x User manual
