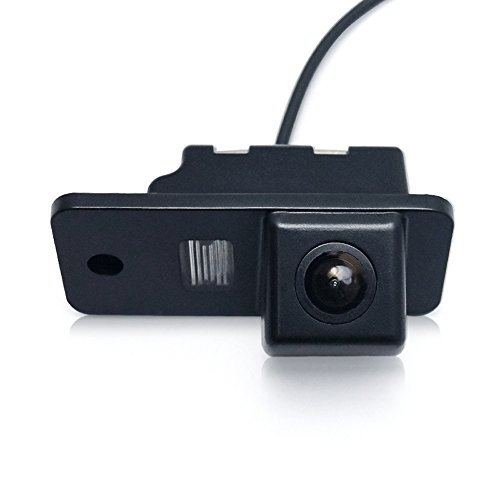

Waterproof Backup Camera HD Color License Plate Car Rear View CCD with 170 Degree Viewing Angle Night Vision for Audi A3 A4 (B6/B7/B8) Q5 Q7 A8 S8 (Model 1 =0728 with single screw hole)

Feature Product

• There's 2 size of selection, please refer to the pictures and check with your car before ordering
• Vehicle reversing cam for A1 2011~2012 / A4(B8) 4d 2008~2012 / A4(B8) 5d 2008~ 2012 / A4(B8) Allroad 2010~2012 / A5 2d Coupe 2008~2012
• Vehicle reversing cam for S5 2d Coupe 2008~2012 / A5 5d Sportback 2008~2012 / A5 2d Cabriolet 2008~2012 / S5 2d Cabriolet 2008~2012
• Vehicle reversing cam for Q5 2009~2012 / TT 2d Coupe 2007~2012 / TT 2d Roadster 2007~2012 / TTS 2d Coupe 2007~2012
• Vehicle reversing cam for TTS 2d Roadster 2007~2012 / TTRS 2d Coupe 2010~2012 / Volkwagen / Passat 5D 2008~2012 / Passat R36 2008~2012

Description

This product could fit for all below models as expected:

Audi A1/A3/A4/A5/A6/A7/TT/RS5/S6/S7/S8/Q3/Q5/Q7/A4L/A6L/A8L

Passat 5D B7 B8 B9 R36

1. TV System: NTSC (If you need PAL, please leave a message)

2. Resolution: 480/520 TV lines

3. Lens Angle: 170°

4. S/N ratio: more than 48db(AGC-OFF)

5. Video Color: Colorful

6. Video Output: 1.0Vp-p,75(Omega)

7. Image Device: 1/4 inch color

8. Sensing Area: 5.78 x 4.19mm

9. Sync. System: Internal

10.Power Supply: DC 12V

11.White Balance: Auto

12.Waterproof Class: ip 66

13.Effective Pixels: 628 x 586 Pixels

14.Electronic Shutter: 1/60-1/10000 seconds

15.Current Consumption: < =150mA

16.Current Consumption: 90mA Max.

17.Storage Temperature: -40°C to +60°C, RH95% Max.

18.Minimum Illumination: 0.3Lux/F1.2

19.Operating Temperature: -30°C to +50°C, RH95%

1 * Car CCD camera

1 * 6M Video cable

1 * 1M Power cable

1 * User manual
