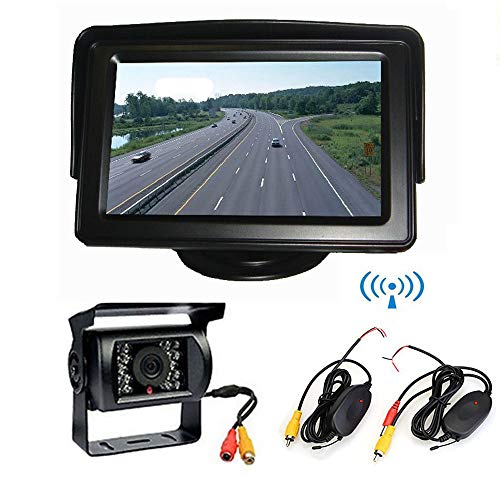

Wireless Vehicle Backup Camera Kit 4.3 inch LCD Monitor + 18 LED IR Night Vision Waterproof Reverse Backup Camera 12V Bus Truck Trailer RV Rear View Parking Assistance System

Feature Product

• HD 7070 Mirror imaging sensor with No Grid Lines Waterproof IP 67 HD Car Rear View Mirror Camera,Hard Metal Cased Camera , Waterproof and Mud proof, with 18 individual Infrared image clearly at night, 140 degree horizontal wide view angle, 120 degree vertical view angle
• Monitor have V1/V2 two video inputs, V2 has priority, so normally the rear view camera wire to V2, you can wire another front/side camera to V1 by Video Cable, when you driving, you can view front by V1,when you turn on reverse ,the V2 will working automatically on
• Support All 12V Car vehicle ,Best for 12V Bus,Truck,RV,Mortorhome,Van etc
• Video Siganl Transfer by Wireless 2.4GHz Receiver and Transmitter,no cabling hassle Connects to rear-view camera and front video screen
• Screen size: 4.3 inch Resolution: 320*240;Aspect Ratio: 4:3 ;Power Supply: DC 12V;Color: Black ;Housing: ABS

Description

Specification:

4.3 inch TFT LCD Car Monitor

Resolution: 480*272 Pixels
Aspect Ratio: 16:9
Power Supply: DC12V
Color: Black
Housing: ABS
Power Consumption: 2W
Standard: PAL/NTSC
Product size: 127x88x25mm
Product weight: 143g
Operating temperature:-20 °c + 50 ℃
Storage temperature:-30 °c + 70 ℃
With 2 video input: Reverse Prior

Backup Camera:

Specification:
Image device: HD7070 mirror image without Grid Lines
TV system: PAL
Effective pixels: 628*582 pixels
Sensing area: 5.78*4.19 mm
Sync. Cystem: internal
Resolution: 480 TV lines
Minimum illumination: 0.3Lux/F1.2
Lens: 2.8mm
S/N ratio:more than 48db (AGC-OFF)
Video output: RCA CONNECTOR, 1.0VP-P, 750HM
Power supply: DC 12V
Operating temperature: -30 to 50 degrees centigrade, RH95%
Storage temperature: -40 to 60 degrees centigrade, RH95% Max.
Weight: 270g

Wireless Transmitter and Receiver:
Wireless transmission of video signal,
no cabling hassle Connects to rear-view camera and front video screen
Take some minutes get your camera become a wireless camera Video signal transmission via 2.4 GHz
radio signal Range: 10M
Input voltage: 12V DC

Package Content
1 x 4.3 Inch Monitor
1 x Power Cable
1 x 18 LED IR Backup Camera
1 x Wireless Transmitter
1 x Wireless Receiver
1 x English User Manual
