Feature Product
- Specification name:Car rearview camera
- Image device:1/4 inch color CMOS/CCD
- TV system:PAL/ .NTSC. Effective pixels:628 * 582 pixels
- Sensing area:5.78 * 4.19mm. Sync.cystem:internal
- Resolution:420 TV line.Lens:3.6mm/2.8mm/1.8mm
Description
Feature:
Specification name:Car rearview camera
Image device:1/4 inch color CMOS/CCD
TV system:PAL/ .NTSC
Effective pixels:628 * 582 pixels
Sensing area:5.78 * 4.19mm
Sync.cystem:internal
Resolution:420 TV line
Minimum illumination:0.3Lux/F1.2
Lens:3.6mm/2.8mm/1.8mm
S/N ratio:more than 48db(AGC-OFF)
Electronic shutter:1/50-1/10000 seconds
Video output:RCA connector, 1.0Vpp, 75Ohm
Current consumption:< =150mA
Power supply:DC 12V
Operating temperature:-30 to 50 degrees centigrade, RH95%
Storage temperature:-40 to 60 degrees centigrade, RH95% Max.
Other items:Automatic white balance, AGC and BLC
View Angle:High-definition and 170 degree wide viewing angle
Waterproof:Yes
Installation and use:
Please read this instruction carefully before installation and use.
This instruction is applied to all our automobile cameras(for rear view or reversing).Installation should be done by professional staff.
Wire connection.
Our cameras are applicable to all types of vehicles. They should be installed at proper position or the vehicle and with monitor.
When used for rear view at forward driving or reversing. Camera with the power cable in the vechicle. When the camera is intended only for revrsing. Connect the power cable of the camera with that of the reversing tear. The red wire end is positive the other is negative.
Package:
1 x Car rearview camear;

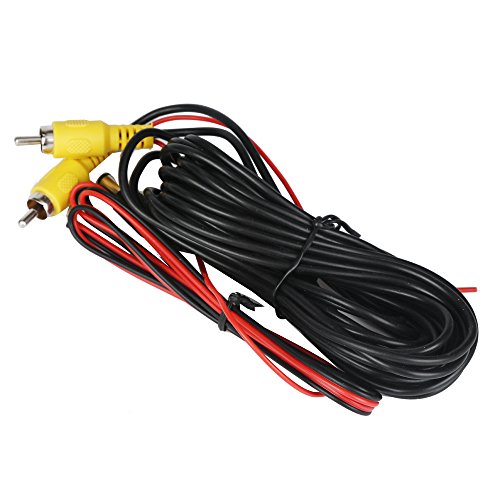

2 x Cable;
1 x User Manual
