Vehicle Backup Camera and 7" Car LCD Monitor Kit 4 Pin 18 LED IR Night Vision Reverse Rear View Camera 12V/24V with 4Pin 20m/65ft Extension Cable No Grid Lines for Bus Truck Trailer RV Camper

Feature Product

• 4Pin connector Car Backup Camera for Motorhome Parking System: 7" Color TFT LCD Monitor + 18 IR LED Night Vision Reverse Camera + 4 Pins Connector Cable. Hard wired connection guarantees safe and clear and stable reversing image. Come with remote controller and Dashboard Bracket
• 4Pin 7inch TFT LCD monitor high resolution image (800x480 Pixels), full color display and low power consumption, adjustable brightness, contrast and color. Image can be rotated horizontally and vertically for mirror or normal viewing with 2 channel video input,2 connect plug,V1/V2 switch,V2 is remote by Green/Blue cable for reversing use priority
• 18 LED IR Night Vison Car HD Color Rear View Camera with 2.8mm(120°horizontal wide view angle ) IP 68 Waterproof with Mirror image Without Grid Lines
• 20m/66ft 4pin Extension cable cable for Long Bus Truck Trailer RV Van Motorhome Schoolbus Camper Lorry and other heavy Duty
• Monitor will automatically switch for V2 when the reversing gear is selected(green cable need to connect for gearbox reversing gear Trigger+)

Description

Only need to connect the monitor power wire with car electronics sytem:

Red wire to car Positive/Live,
Black wire to GND,
Green/Blue wire to reversing gear Trigger+ (or No need to connect)
easy to install easy to use

This rear view camera monitor system is support reversing used or permanently used

7 inch CAR TFT LCD MONITOR DC 12V-24V

Display Size:7.0 Inch
Resolution :800*480
System :PAL/NTSC Auto
Power requirement:DC 12V-24V
Consumption:6W
Video:2 channel video input;
V1/V2 switch,(V2 for reversing parking backup view priority)
Net Weight:Approx. 743g

18 IR LED Car HD Color Rear View Camera

Image sensor:HD7070 mirror image without Grid Lines
TV system:PAL/NTSC
Lens:2.8mm(120 View angle )
Number of pixels:720(H)*586(V)
Horizontal Resolution: 480 TV Lines
Scan frequency:50Hz-60Hz
S/N Ratio:≥48dB(AGC OFF)
Minimum illumination:0 LUX
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision:Yes
Video Output:1.0Vp-p.1.5ω.4Pin Connector
Synchronous System:International Synchronization
work Temperature:-20°C~+60°C
Power Requirement: DC 12V-24V
Weight: Approx 300g
Waterproof:IP 68

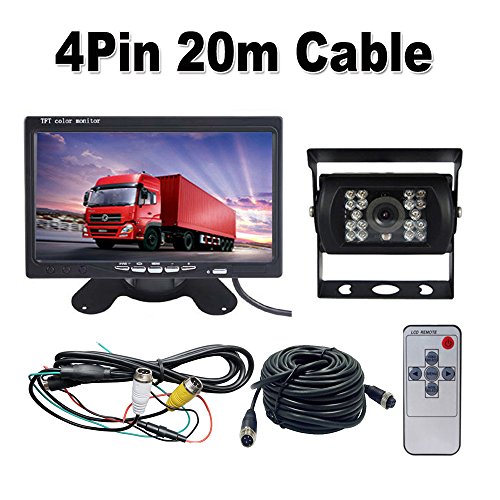

Package included:

1 x 4Pin 7" Rear view Monitor
1 x Dashboard Bracket
1 x Remote controller
1 x Monitor Power Video Harness Cable
1 x 4Pin 18 LED Rear View Camera
1 X 4Pin 20M/66ft Cable
